Insert for Rotating Tools

SRM25E-M

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI SRM25E-M
Stock
Unit of Length M

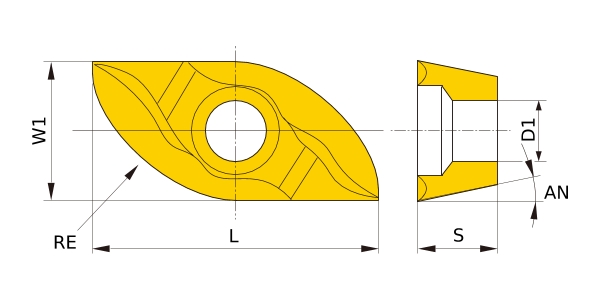

D1 4.7
AN 9°
L 20.5
W1 10.2
S 5.5
RE 12.5
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
2D Model (DXF)
CAD data name Download
SRM25E-M
CAD
