Insert for Rotating Tools

SRM32E-M

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI SRM32E-M
Stock

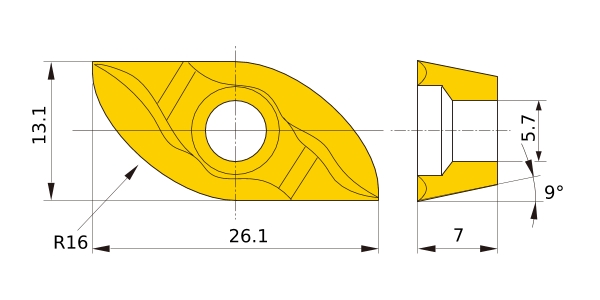

Unit of Length M
D1 5.7
AN 9°
L 26.1
W1 13.1
S 7
RE 16
Classification of Grades
Coated・Carbide MP6120
Coated・Carbide MP9120
