Small Tools >CTBH >CTBHL1616-160

Small Tools

CTBH


CTBHL1616-160

Product Information

  • For gang type tool posts.

The actual product may differ from the displayed image.

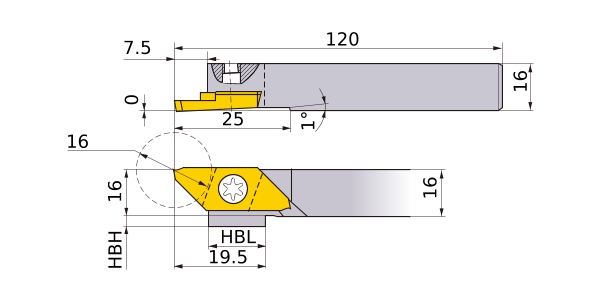

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
CUTDIA 16
B 16
LF 120
LH 19.5
CDX 7.5
H 16
HF 16
WF2 3.4
S10 25
Peripheral effective cutting edge count: ZEFP 1
Insert Number BTBT
2D Model (DXF)
CAD data name Download
CTBHL1616-160
CAD
