Small Tools >SVVC >SVVCN2020K16

Small Tools

SVVC


SVVCN2020K16

Product Information

  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand N
Stock
Unit of Length M
B 20

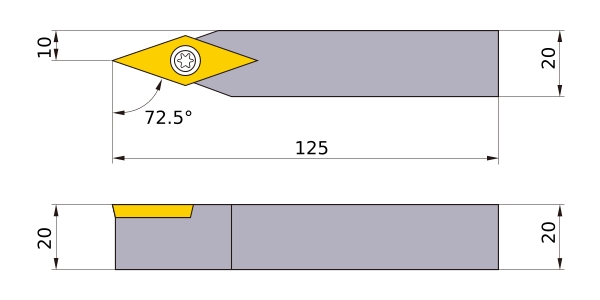

KAPR 72.5°
LF 125
WF 10
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__1604
2D Model (DXF)
CAD data name Download
SVVCN2020K16
