Small Tools >GTBH >GTBHL1010-30

Small Tools

GTBH
（Small Tools）

GTBHL1010-30

Product Information

  • For gang type tool posts.
  • High rigidity due to desigh of vertical insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

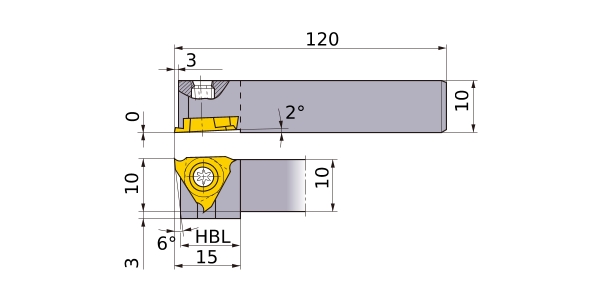

B 10
LF 120
LH 15
CDX 3
H 10
HF 10
HBH 3
Peripheral effective cutting edge count: ZEFP 1
