Small Tools > FSVPB_C_A

Small Tools

FSVPB_C_A
（Dimple Bar）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Employs positive insert 5°,7°,11°.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).

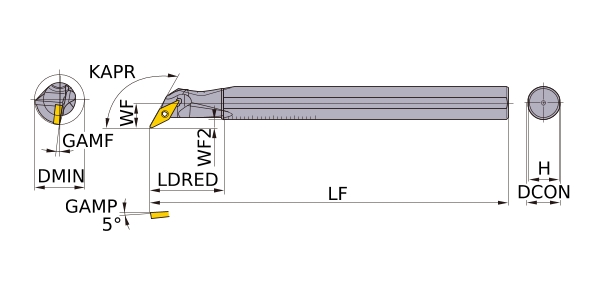

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type1 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
FSVPC1610R-08A Type1 CAD R
FSVPB2012R-11A Type1 CAD R
FSVPB2516R-11A Type1 CAD R
FSVPB3425R-16A Type1 CAD R
FSVPB4032R-16A Type1 CAD R
FSVPC1610L-08A Type1 CAD L
FSVPB2012L-11A Type1 CAD L
FSVPB2516L-11A Type1 CAD L
FSVPB3425L-16A Type1 CAD L
FSVPB4032L-16A Type1 CAD L
Insert Number D4 DCON L1 L LF L24 FLGT CBDP OAL LPR L2 L19 F1 WF BS H1 H RR GAMF GAMO LAMS ALF FHA KRINS STA D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 RE RE1 RE2 RE3 D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX LDRED L20 L15 LCF LU L7 LH LCCB L8 L9 HBKW LS H2 HF HBH W1 KWW S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX WT R PRFRAD ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
VC__0802 10 150 8 9 8 16 0.4 25 3 1   117.5°
VB__1103 12 150 10 11 8 20 0.4 28 4.5 1   117.5°
VB__1103 16 180 12.5 15 5 25 0.4 28 5 1   117.5°
VB__1604 25 220 17 23.5 13 34 0.8 50 5 1   117.5°
VB__1604 32 250 22 30.4 9 40 0.8 55 6.5 1   117.5°
VC__0802 10 150 8 9 8 16 0.4 25 3 1   117.5°
VB__1103 12 150 10 11 8 20 0.4 28 4.5 1   117.5°
VB__1103 16 180 12.5 15 5 25 0.4 28 5 1   117.5°
VB__1604 25 220 17 23.5 13 34 0.8 50 5 1   117.5°
VB__1604 32 250 22 30.4 9 40 0.8 55 6.5 1   117.5°
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
