Small Tools >SVJC-SM >SVJCR1212JX13-SM

Small Tools

SVJC-SM


SVJCR1212JX13-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.

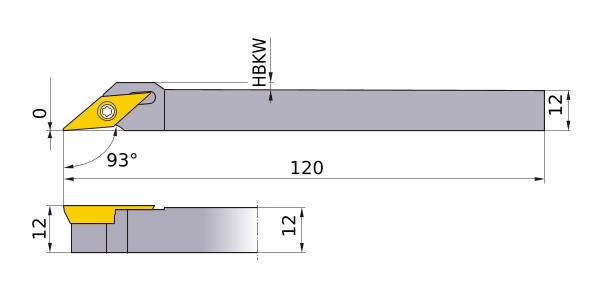

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVJCR1212JX13-SM
Hand R
Stock
Unit of Length M
B 12
KAPR 93°
LF 120
H 12
HF 12
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__1303
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Inserts

  • Spare Parts
