C22-20STUCR11-180-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

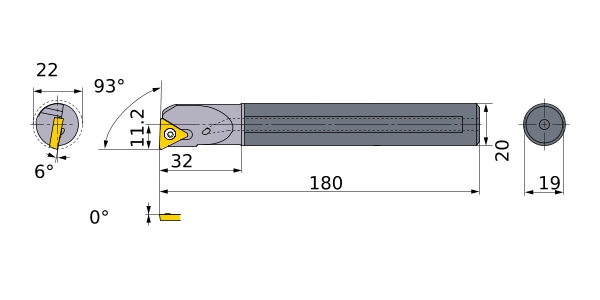

Unit of Length M
DMIN 22
DCONMS 20
KAPR 93°
LF 180
LDRED 32
WF 11.2
H 19
GAMP 0°
GAMF 6°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__1102
