Small Tools >C_STUC_C_C >C32-25STUCL16-180-C

Small Tools

C_STUC_C_C


C32-25STUCL16-180-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

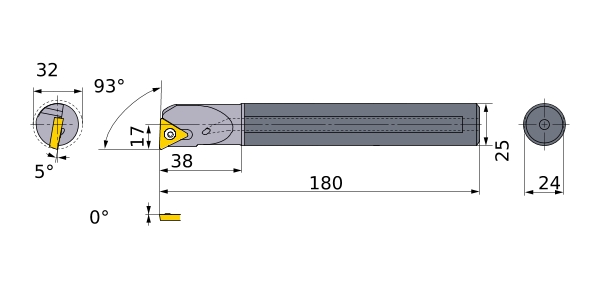

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DMIN 32
DCONMS 25
KAPR 93°
LF 180
LDRED 38
WF 17
H 24
GAMP 0°
GAMF 5°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__16T3
