S16-12SCLPR09-090-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

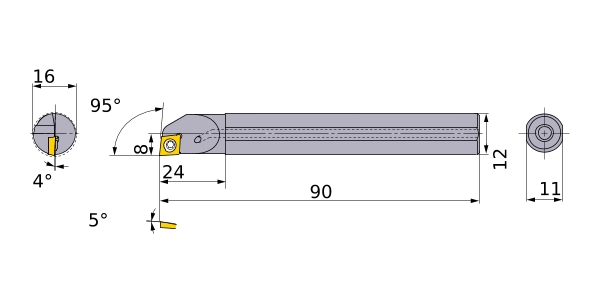

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 16
DCONMS 12
KAPR 95°
LF 90
LDRED 24
WF 8
H 11
GAMP 5°
GAMF 4°
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__0903
