S30-25SDQCL11-150-C

Product Information

  • WITH COOLANT HOLE
  • Screw-on type

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

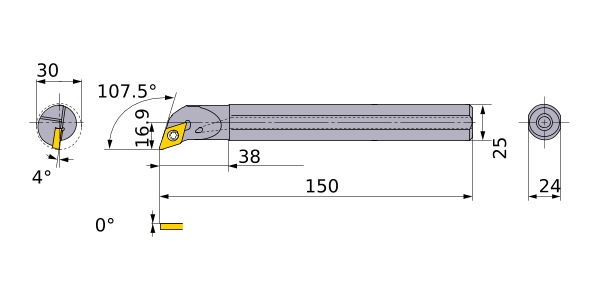

DMIN 30
DCONMS 25
KAPR 107.5°
LF 150
LDRED 38
WF 16.9
H 24
GAMP 0°
GAMF 4°
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
