Small Tools >C_STUC >C08-07STUCR06-090

Small Tools

C_STUC


C08-07STUCR06-090

Product Information

  • Carbide shank
  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.

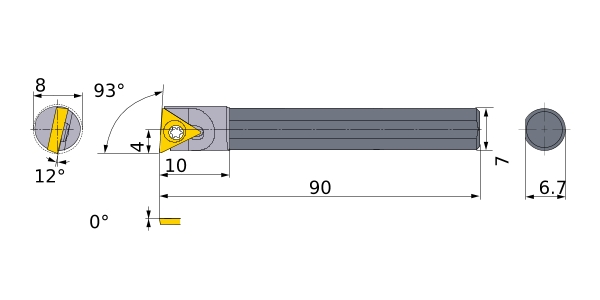

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 8
DCONMS 7
KAPR 93°
LF 90
LDRED 10
WF 4
H 6.7
GAMP 0°
GAMF 12°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__0601
2D Model (DXF)
CAD data name Download
C08-07STUCR06-090
CAD
