Solid End Mills >MS2XL6 >MS2XL6D0120N060

Solid End Mills

MS2XL6
（End mill, Short cut length, 2 flute, 6mm shank）

MS2XL6D0120N060

Product Information

  • 2 flute long neck end mill.
  • Shank type (diameter 6mm)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

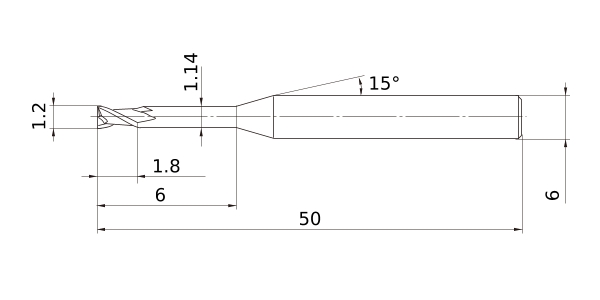

Unit of Length M
DC 1.2
DCON 6
DN 1.14
BHTA2 15°
PSIR 30
LF 50
LU 6
APMX 1.8
FHA 30°
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS
