Solid End Mills >VA2MS >VA2MSD1600
VA2MS
(End mill, Medium cut length, 2 flute)
The actual product may differ from the displayed image.

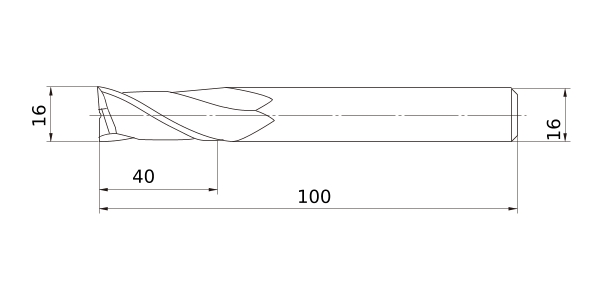

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | |
Unit of Length | M |
DC | 16 |
DCON | 16 |
LF | 100 |
APMX | 40 |
FHA | 30° |
Peripheral effective cutting edge count: ZEFP | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.03 |
Coated | V |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
