Solid End Mills

VAMR
（Roughing type, Medium cut length, 4–6 flute, Medium pitch form）

VAMRD3000

Product Information

  • Roughing 4–6 flute end mill with high grade HSS substrate and Violet coating for general use.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

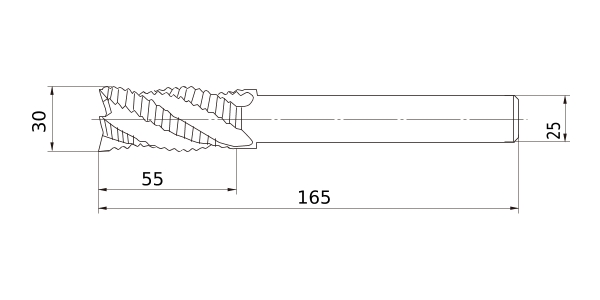

DC 30
DCON 25
LF 165
APMX 55
FHA 30°
Peripheral effective cutting edge count: ZEFP 5
Coated V
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
