Solid End Mills

MSMHZD
（End mill, Medium cut length, 3 flute）

MSMHZDD0950

Product Information

  • 3 flute end mill for both plunging and slotting.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

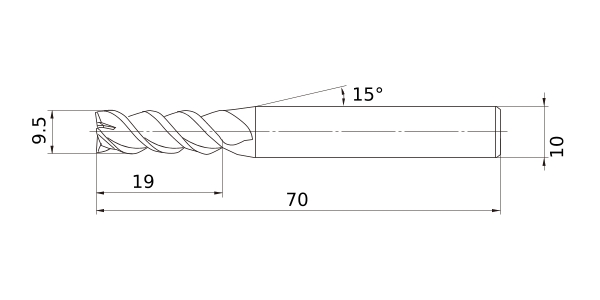

DC 9.5
DCON 10
BHTA2 15°
LF 70
APMX 19
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS
