Solid End Mills >MS4XL >MS4XLD1000N400
MS4XL
(End mill, 4 flute, Long neck)

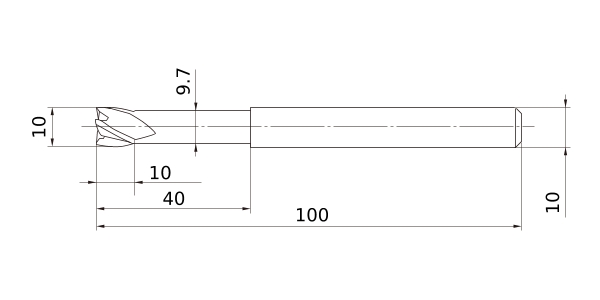

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 10 |
DCON | 10 |
DN | 9.7 |
PSIR | 30 |
LF | 100 |
LU | 40 |
APMX | 10 |
FHA | 30° |
Peripheral effective cutting edge count: ZEFP | 4 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.02 |
Coated | MS |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
