Solid End Mills >CRN2XLRB >CRN2XLRBD0200R010N12

Solid End Mills

CRN2XLRB
（Corner radius end mill, Short cut length, 2 flute, For copper electrodes）

CRN2XLRBD0200R010N12

Product Information

  • 2 flute long neck corner radius end mill with CRN coating for copper electrode machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

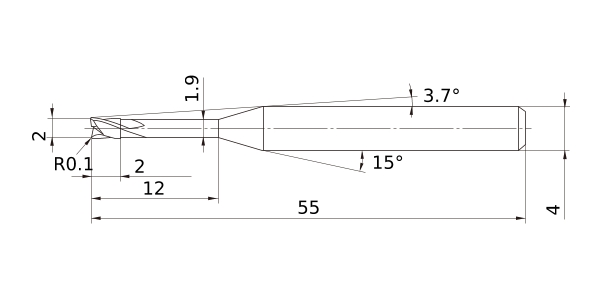

Unit of Length M
DC 2
DCON 4
DN 1.9
B2 3.7°
BHTA2 15°
LF 55
LU 12
APMX 2
FHA 30°
RE 0.1
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated CRN
