Solid End Mills

MSSHD
（High power, Short cut length, 4 flute）

MSSHDD1300

Product Information

  • 4 flute high power end mill.
  • High rigidity short cut length type which adopted a new flute geometry and high helix.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

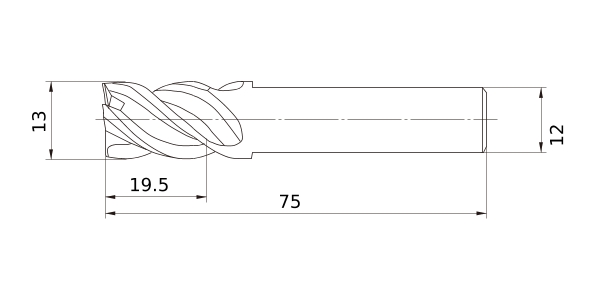

DC 13
DCON 12
LF 75
APMX 19.5
FHA 45°
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Coated MS
