Solid End Mills >DF2XLB >DF2XLBR0020N080

Solid End Mills

DF2XLB
（Ball nose, 2 flute, Long neck, For graphite）

DF2XLBR0020N080

Product Information

  • 2 flute long neck ball nose end mill with original diamond coating for graphite machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

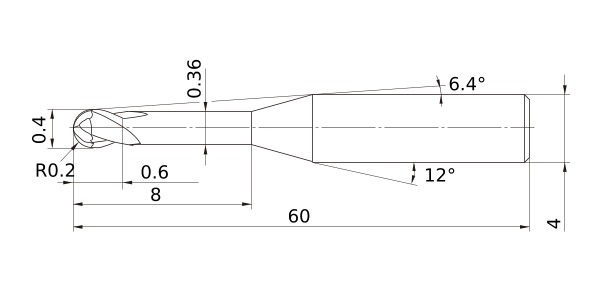

DC 0.4
DCON 4
DN 0.36
B2 6.4°
BHTA2 12°
LF 60
LU 8
APMX 0.6
FHA 30°
RE 0.2
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Coated DF
