Solid End Mills >VQMHVRB >VQMHVRBD0500R100

Solid End Mills

VQMHVRB

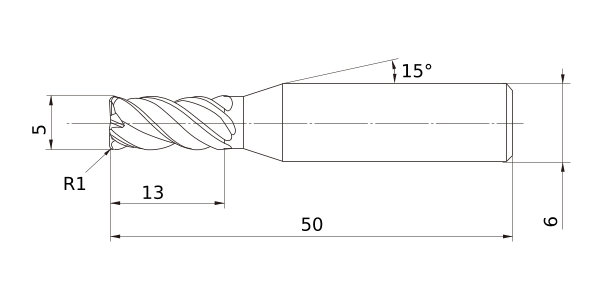

（Corner radius end mill, Medium cut length, 4 flute, Irregular helix flutes）

VQMHVRBD0500R100

Product Information

  • VQ vibration control end mills for reduced chattering, a stable performance on difficult-to-cut materials and long overhang applications.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 5
DCON 6
BHTA2 15°
LF 50
APMX 13
RE 1
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VQ
2D Model (DXF)
CAD data name Download
VQMHVRBD0500R100
CAD
