Solid End Mills

VQMHZVOH
（End mill, Medium cut length, 3 flute for plunging and slotting, with internal through coolant holes）

VQMHZVOHD1600

Product Information

  • 3 flute end mill for both plunging and slotting.
  • Through coolant holes for high performance plunging cutting and pocketing.
  • Featuring irregular helical geometry for reduced chattering.

The actual product may differ from the displayed image.

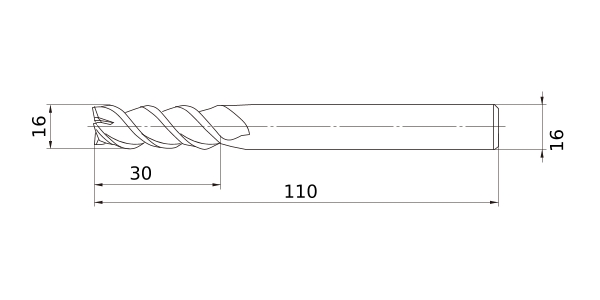

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 16
DCON 16
LF 110
APMX 30
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Coated VQ
