Solid End Mills >iMX_B6HV >IMX12B6HV12012

Solid End Mills

iMX_B6HV
（Ball nose head, 6 flute, Irregular curve）

IMX12B6HV12012

Product Information

  • Irregular curve cutting edge controls vibration and achieves stable machining of difficult-to-cut materials and is suitable for long overhang applications.
  • 6 flutes enables high machining efficiency.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M

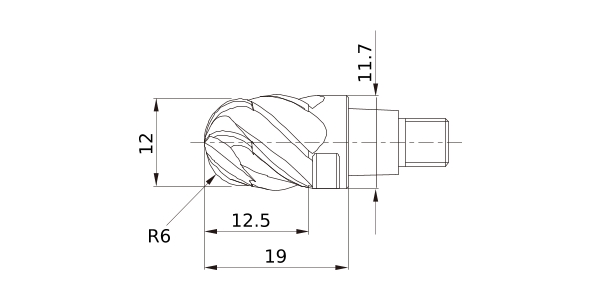

DC 12
DCON 11.7
LH 19
APMX 12.5
FHA 45°
RE 6
Peripheral effective cutting edge count: ZEFP 6
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
2D Model (DXF)
CAD data name Download
IMX12B6HV12012
