Solid End Mills >MP2SB >MP2SBR0075S06

Solid End Mills

MP2SB
（Ball nose, Short cut length, 2 flute）

MP2SBR0075S06

Product Information

  • 2-flute ball nose end mills with short cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.

The actual product may differ from the displayed image.

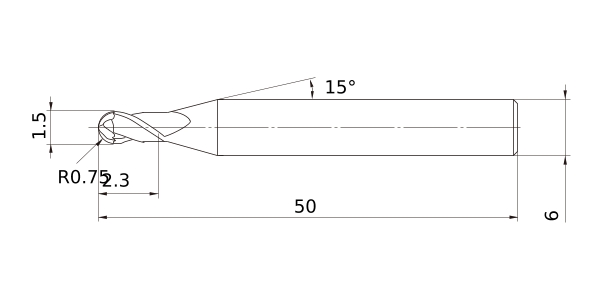

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 1.5
DCON 6
BHTA2 15°
LF 50
APMX 2.3
FHA 30°
RE 0.75
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
