Solid End Mills

iMX_S4HV_S
（Square head, 4 flute, Irregular helix, with coolant hole）

IMX10S4HV10010S

Product Information

  • Coolant thru design allows for effective chip evacuation.
  • Irregular helix controls vibration and achieves stable machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M
DC 10
DCON 9.7
LH 16
APMX 10
FHA 42°,45°
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02

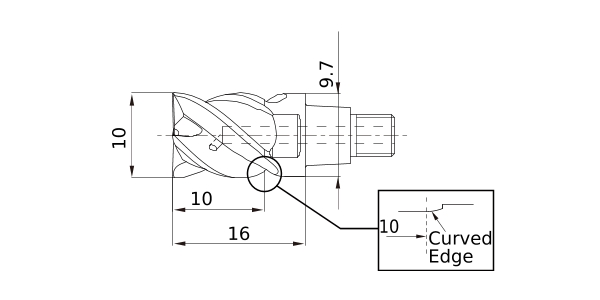

2D Model (DXF)
CAD data name Download
IMX10S4HV10010S
CAD
