Solid End Mills

iMX_S3A
（Square head, 3 flute, For aluminium alloy）

IMX16S3A16012

Product Information

  • High efficiency machining is possible due to polished rake face and sharp cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade ET2020
Stock
Unit of Length M

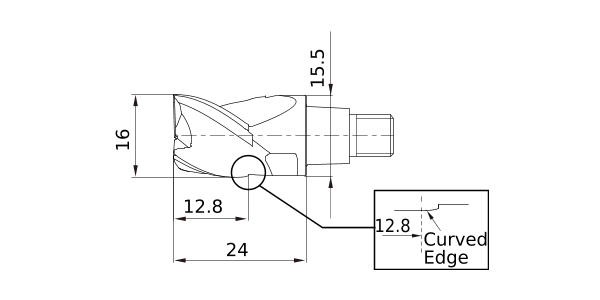

DC 16
DCON 15.5
LH 24
APMX 12.8
FHA 37.5°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
