Solid End Mills >iMX_C3A >IMX25C3A250R50020

Solid End Mills

iMX_C3A
（Corner radius head, 3 flute, For aluminium alloy）

IMX25C3A250R50020

Product Information

  • High efficiency machining is possible due to polished rake face and sharp cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade ET2020
Stock
Unit of Length M

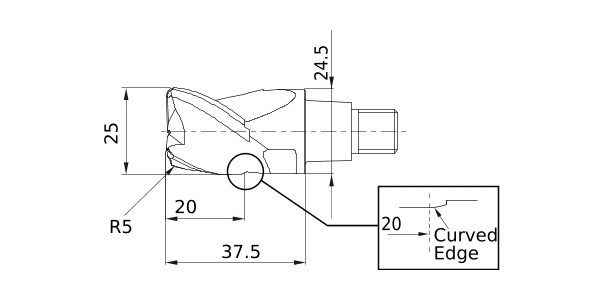

DC 25
DCON 24.5
LH 37.5
APMX 20
FHA 37.5°
RE 5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.02
R Tolerance + 0.02
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
2D Model (DXF)
CAD data name Download
IMX25C3A250R50020
