Solid End Mills >iMX_C15T_C >IMX20C15T190R05T080C

Solid End Mills

iMX_C15T_C
（Corner radius, Taper head, Multi-flute, with coolant hole）

IMX20C15T190R05T080C

Product Information

  • Suitable for 3-dimensional free-form surface cutting such as blades.
  • High feed cutting is possible due to multiple cutting and wide chip pocket.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M

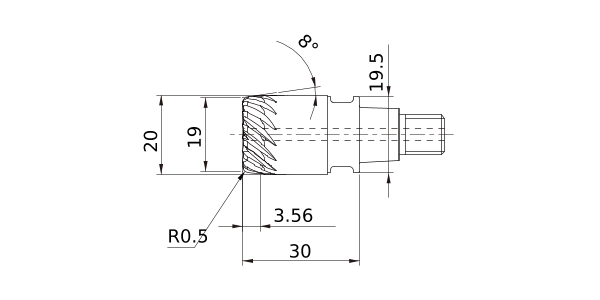

DC 19
DCX 20
DCON 19.5
BHTA 8°
LH 30
APMX 3.56
FHA 35°
RE 0.5
Peripheral effective cutting edge count: ZEFP 15
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
2D Model (DXF)
CAD data name Download
IMX20C15T190R05T080C
CAD
