Solid End Mills

VFFDRB
（Duplex corner radius end mill, Short cut length, 4-6 flute）

VFFDRBD0400

Product Information

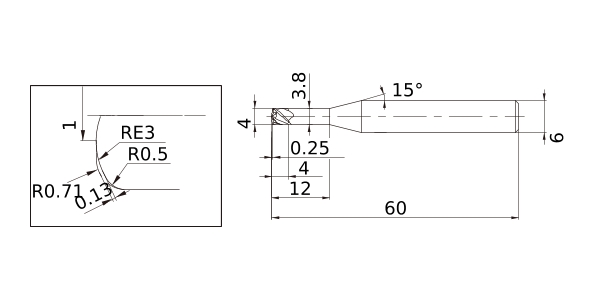

  • High feed rate possible due to the duplex corner radius geometry.
  • Multi-flutes enable high feed machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
A3 4
DC 4
DCON 6
DCIN 1
DN 3.8
BHTA2 15°
RMPX 1.9°
LF 60
LU 12
S10 0.13
APMX 0.25
FHA 40°
RE1 0.71
RE2 0.5
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
2D Model (DXF)
CAD data name Download
VFFDRBD0400
CAD
