Solid End Mills

iMX_C4FD_C
（Duplex corner radius head with coolant hole, 4 flute, For high feed）

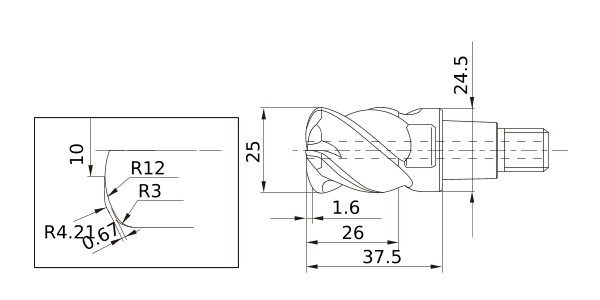

IMX25C4FD25026C

Product Information

  • The duplex corner radius and 4 flute geometry enables efficient machining at higher feed rates.
  • End face center coolant hole provides a stable supply of coolant.
  • Duplex corner radius end mill is not suitable for corner radius machining due to the possibility of leaving unmachined areas.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M
A3 26
DC 25
DCON 24.5
DCIN 10
RMPX 4.5°
LH 37.5
S10 0.67
APMX 1.6
FHA 45°
RE1 4.21
RE2 3
RE3 12
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
2D Model (DXF)
CAD data name Download
IMX25C4FD25026C
CAD
