Solid End Mills

iMX_B2S
（Ball nose head, 2 flute, for hardened steel）

IMX16B2S16016

Product Information

  • Ideal for machining with long overhangs.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP8110
Stock
Unit of Length M

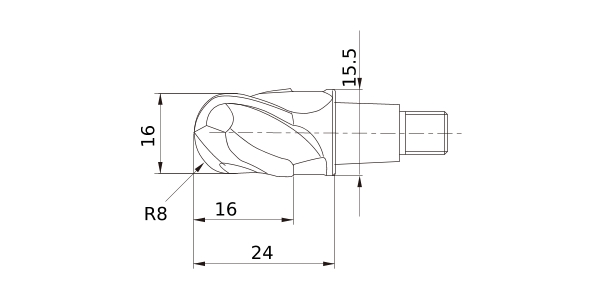

DC 16
DCON 15.5
LH 24
APMX 16
FHA 30°
RE 8
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.02
R Tolerance + 0.02
