Solid End Mills >VQT5MVRB >VQT5MVRB250R600N75C

Solid End Mills

VQT5MVRB
（Corner radius, Medium cut length, 5 flute, Irregular helix flutes, With coolant hole）

VQT5MVRB250R600N75C

Product Information

  • Flute geometry suitable for deep slotting and effective chip evacuation.
  • Sharp cutting edges provide long tool life when machining titanium alloys.

The actual product may differ from the displayed image.

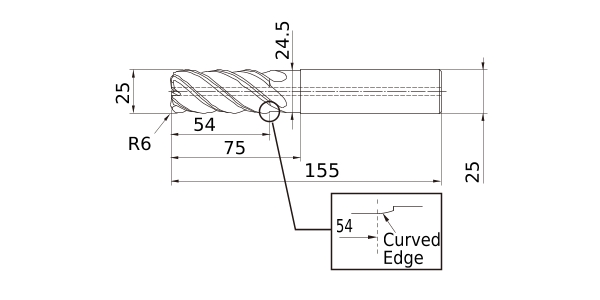

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 25
DCON 25
DN 24.5
LF 155
LU 75
APMX 54
RE 6
Peripheral effective cutting edge count: ZEFP 5
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.04
Coated VQ
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
