Solid End Mills >MPSHV_W >MPSHVD0800N020W

Solid End Mills

MPSHV_W
（End mill, Short cut length, 2.5xDC Neck recess, 4 Flute irregular helix）

MPSHVD0800N020W

Product Information

  • Versatile end mills for universal machining
  • Irregular helix flutes to reduce vibration
  • Extended tool life on materials up to 55 HRC

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

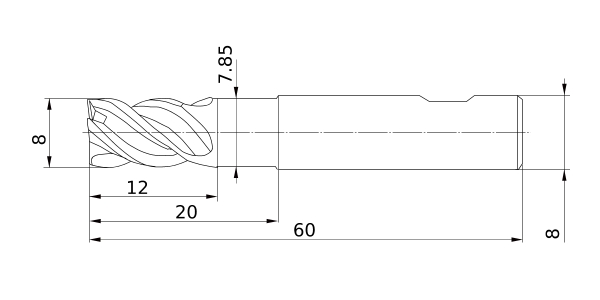

Unit of Length M
DC 8
DCON 8
DN 7.85
LF 60
LU 20
APMX 12
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.009

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
