Solid End Mills >MPMHV_W >MPMHVD2000N050W

Solid End Mills

MPMHV_W
（End mill, Medium cut length, 2.5xDC Neck recess, 4 Flute irregular helix）

MPMHVD2000N050W

Product Information

  • Versatile end mills for universal machining
  • Irregular helix flutes to reduce vibration
  • Extended tool life on materials up to 55 HRC

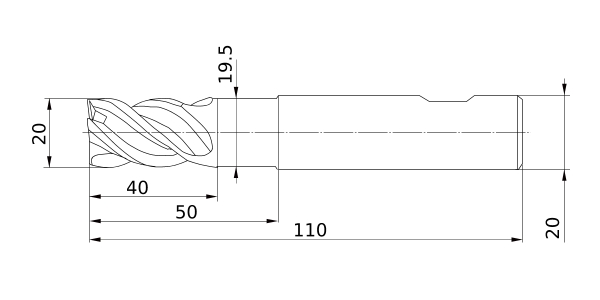

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 20
DCON 20
DN 19.5
LF 110
LU 50
APMX 40
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.013

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
