Solid End Mills

VQN4MBF
（Ball nose, Medium cut length, 4 flute）

VQN4MBFR0100

Product Information

  • (Al, Ti, Si) N-based coating has excellent wear and chipping resistance when machining heat resistant super alloys.
  • The 4-flute end cutting edge is also ideal for 5-axis machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

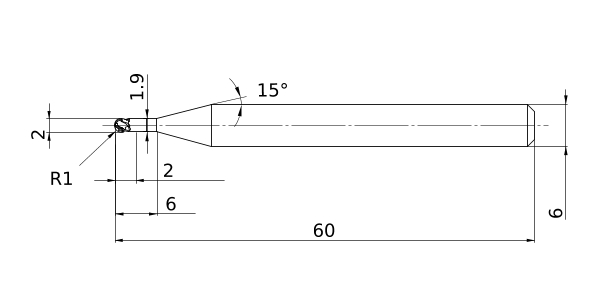

DC 2
DCON 6
DN 1.9
BHTA2 15°
LF 60
LU 6
APMX 2
FHA 30°
RE 1
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.01
R Tolerance + 0.01
Coated VQN
2D Model (DXF)
CAD data name Download
VQN4MBFR0100
CAD
