Solid End Mills >MP3ES >MP3ESD0700S07
MP3ES
(End mill, 3 flute, For swiss type lathe)
The actual product may differ from the displayed image.

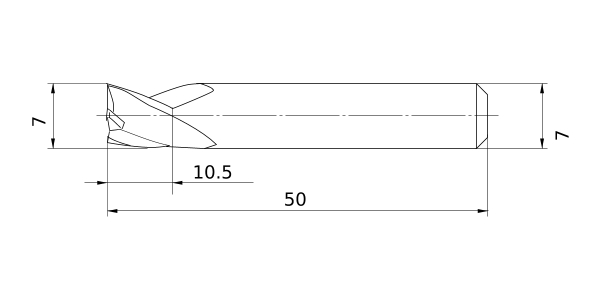

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 7 |
DCON | 7 |
LF | 50 |
APMX | 10.5 |
FHA | 30° |
Peripheral effective cutting edge count: ZEFP | 3 |
Max. Cutting EdgeDiameter Tolerance | -0.01 |
Min. Cutting EdgeDiameter Tolerance | -0.03 |
Coated | MS+ |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
