Solid End Mills >DLC3SA >DLC3SA160N48C

Solid End Mills

DLC3SA
（End mill, Short cut length, with multiple internal through coolant holes, 3 flute）

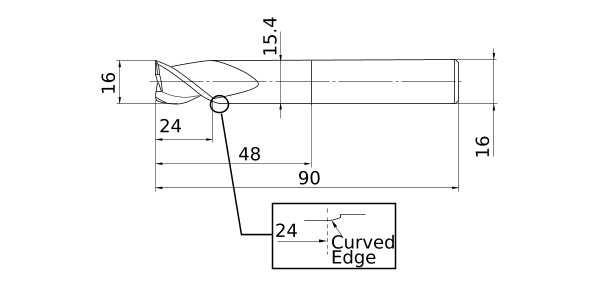

DLC3SA160N48C

Product Information

  • Stability and reliability even when slotting, ramping and plunging.
  • The cross sectional geometry of the flutes is perfect for efficient chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 16
DCON 16
DN 15.4
LF 90
LU 48
APMX 24
FHA 37.5°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Coated DLC
2D Model (DXF)
CAD data name Download
DLC3SA160N48C
CAD
