Solid End Mills >VFRPSRB >VFRPSRBD0100R040N040

Solid End Mills

VFRPSRB
（Corner radius end mill, Short cut length, High precision, 4 flute）

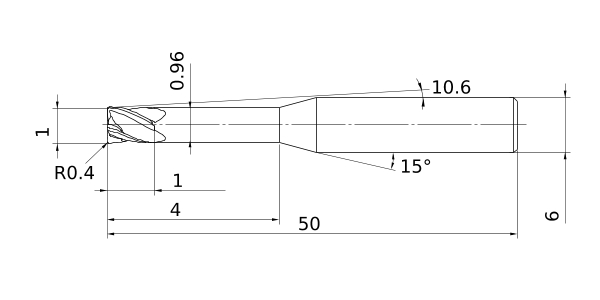

VFRPSRBD0100R040N040

Product Information

  • Seamless corner radius geometry. DC≥1.5
  • The wiper edge and strong back taper achieve high-precision machining. 1.5≤DC≤5

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 1
DCON 6
DN 0.96
B2 10.6
BHTA2 15°
LF 50
LU 4
APMX 1
FHA 30°
RE 0.4
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.005
R Tolerance + 0.005
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.01
Coated VFR
2D Model (DXF)
CAD data name Download
VFRPSRBD0100R040N040
