Solid End Mills

VQJCS
（End mill, Semi long cut length, 5 flute, Irregular pitch flutes, Chip breaker）

VQJCSD0800

Product Information

  • Chipbreaker type end mill for efficient chip breaking capabilities that also provides good surface finishes.
  • A high rigidity Smart Miracle vibration damping end mill for high efficiency trochoidal milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

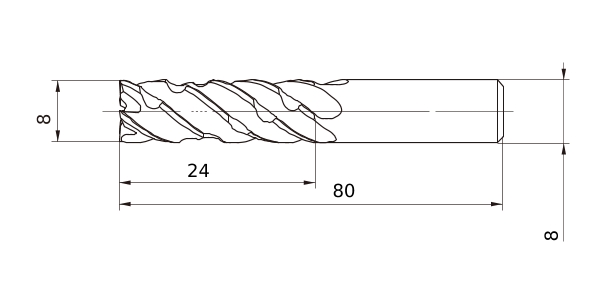

DC 8
DCON 8
LF 80
APMX 24
FHA 40°
Peripheral effective cutting edge count: ZEFP 5
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.03
Coated VQ
2D Model (DXF)
CAD data name Download
VQJCSD0800
CAD
