Solid End Mills

MP3C
（CHAMFER CUTTER, 3 FLUTE）

MP3CD0200

Product Information

  • The optimum helix angle provides great sharpness and suppresses the occurrence of burrs.
  • High feed machining is achieved by adopting 3 flutes.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

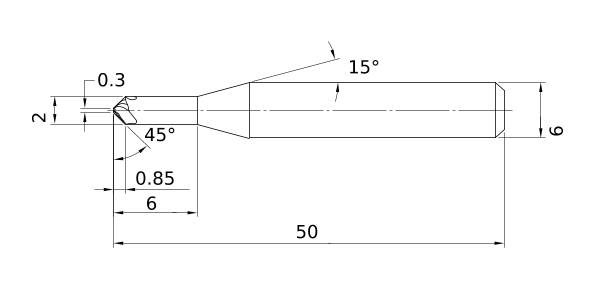

Unit of Length M
DC 2
DCON 6
BHTA2 15°
KAPR 45°
LF 50
LU 6
APMX 0.85
DCN 0.3
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0.03
Min. Cutting EdgeDiameter Tolerance -0.03
Coated MS+
