Solid End Mills > C3MAL

Solid End Mills

C3MAL
（END MILL, MEDIUM CUT LENGTH, 2 AND 3 FLUTE, FOR ALUMINIUM ALLOYS）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Flute length is DC x 2.5.
  • The cutting edge suppresses chatter and vibration resulting in superior component surface finishes.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

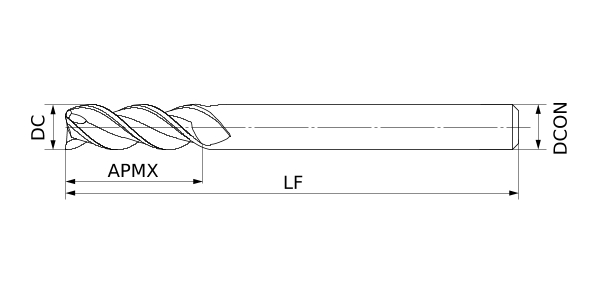

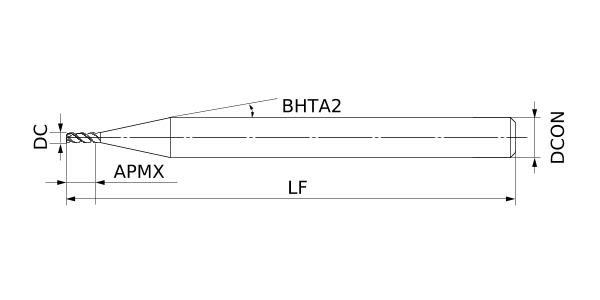

Type1 [Expand]

Type2 [Expand]

Type3 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
C3MALD0100 Type1 CAD
C3MALD0150 Type1 CAD
C3MALD0200 Type1 CAD
C3MALD0250 Type1 CAD
C3MALD0300 Type1 CAD
C3MALD0400 Type1 CAD
C3MALD0500 Type1 CAD
C3MALD0600 Type2 CAD
C3MALD0700S06 Type3 CAD
C3MALD0800 Type2 CAD
C3MALD0800S06 Type3 CAD
C3MALD0900S08 Type3 CAD
C3MALD1000 Type2 CAD
C3MALD1000S08 Type3 CAD
C3MALD1100S10 Type3 CAD
C3MALD1200 Type2 CAD
C3MALD1200S10 Type3 CAD
R PRFRAD D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ap APMX HTB DCN CDI DCINX BDX CWX LBX L3 LBB CDX L20 LDRED L15 LCF D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 L1 L L24 FLGT CBDP OAL LPR D4 DCON D2 DCX D8 DAH DAH1 DAH2 DCCB CNT D9 B L2 LH L19 LU LF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 2.5 4 45 45° 15° 3
1.5 3.7 4 45 45° 15° 3
2 5 4 45 45° 15° 3
2.5 6.3 4 45 45° 15° 3
3 7.5 6 50 45° 15° 3
4 10 6 50 45° 15° 3
5 12.5 6 55 45° 15° 3
6 15 6 55 45° 3
7 17.5 6 80 45° 3
8 20 8 70 45° 3
8 20 6 110 45° 3
9 22.5 8 110 45° 3
10 25 10 75 45° 3
10 25 8 130 45° 3
11 28 10 130 45° 3
12 30 12 80 45° 3
12 30 10 150 45° 3
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
