Solid End Mills >C3XLAL >C3XLALD0100N030

Solid End Mills

C3XLAL
（END MILL, LONG NECK, 2 AND 3 FLUTE, FOR ALUMINIUM ALLOYS）

C3XLALD0100N030

Product Information

  • The cutting edge suppresses chatter and vibration resulting in superior component surface finishes.
  • With a long neck geometry DC x 3 and DC x 5.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

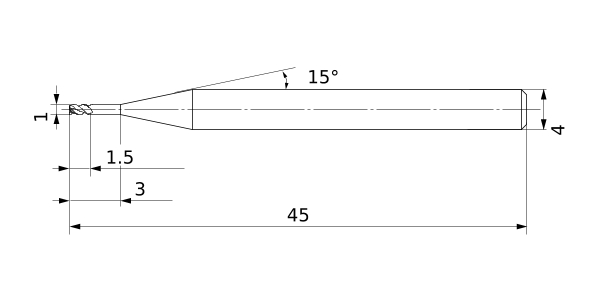

DC 1
DCON 4
BHTA2 15°
LF 45
LU 3
APMX 1.5
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
2D Model (DXF)
CAD data name Download
C3XLALD0100N030
CAD
