Solid End Mills >C3XLAL >C3XLALD0300N090

Solid End Mills

C3XLAL
（END MILL, LONG NECK, 2 AND 3 FLUTE, FOR ALUMINIUM ALLOYS）

C3XLALD0300N090

Product Information

  • The cutting edge suppresses chatter and vibration resulting in superior component surface finishes.
  • With a long neck geometry DC x 3 and DC x 5.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

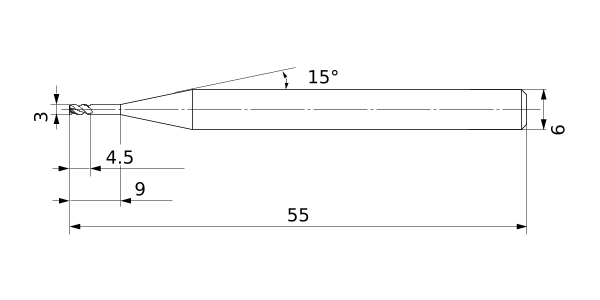

Unit of Length M
DC 3
DCON 6
BHTA2 15°
LF 55
LU 9
APMX 4.5
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
