Solid End Mills >DLC3XLAL >DLC3XLALD0800N240

Solid End Mills

DLC3XLAL
（END MILL, LONG NECK, 2 AND 3 FLUTE, FOR ALUMINIUM ALLOYS）

DLC3XLALD0800N240

Product Information

  • With a long neck geometry DC x 3 and DC x 5.
  • DLC coating provides extreme resistance to welding.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

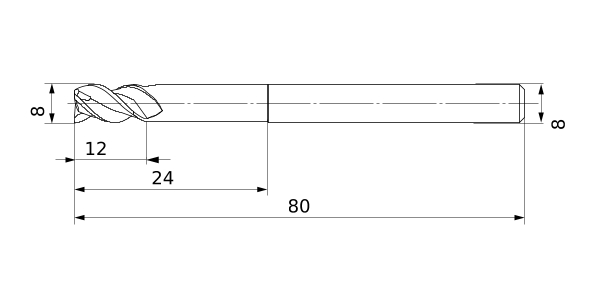

Unit of Length M
DC 8
DCON 8
LF 80
LU 24
APMX 12
FHA 45°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated DLC
