Solid End Mills

VFR4MB
（BALL NOSE, MEDIUM CUT LENGTH, 4 FLUTE）

VFR4MBR0300

Product Information

  • The 4 flute geometry with a cutting edge extending to the centre achieves a long tool life and enables high efficiency machining.

The actual product may differ from the displayed image.

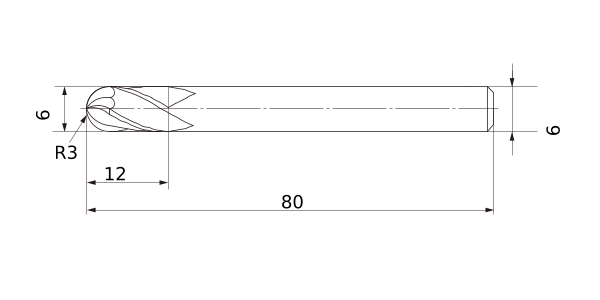

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 6
DCON 6
LF 80
APMX 12
FHA 30°
RE 3
Peripheral effective cutting edge count: ZEFP 4
R Tolerance - -0.01
R Tolerance + 0.01
Coated VFR
2D Model (DXF)
CAD data name Download
VFR4MBR0300
