Solid End Mills >VQ4MVM >VQ4MVMD0800N240

Solid End Mills

VQ4MVM
（End mill, Medium cut length, 4 flute, For multifunctional machining）

VQ4MVMD0800N240

Product Information

  • Multifunctional end mill that enables a strong ramping capability.
  • Chip evacuation is improved by increasing the capacity of the radial cutting edge pocket.

The actual product may differ from the displayed image.

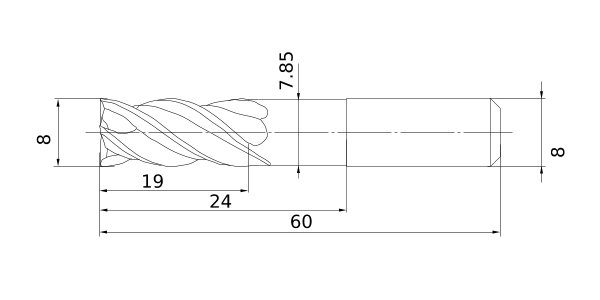

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 8
DCON 8
DN 7.85
LF 60
LU 24
APMX 19
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VQ
