Spare Parts >GYAR20Q90A-D06

Spare Parts

GYAR20Q90A-D06

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

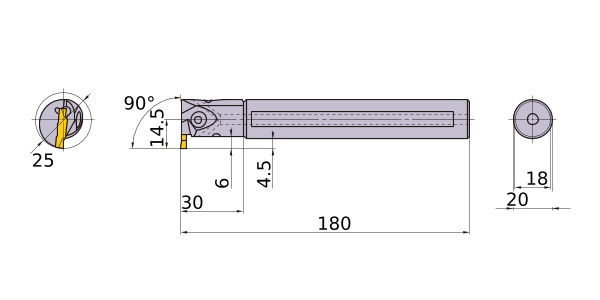

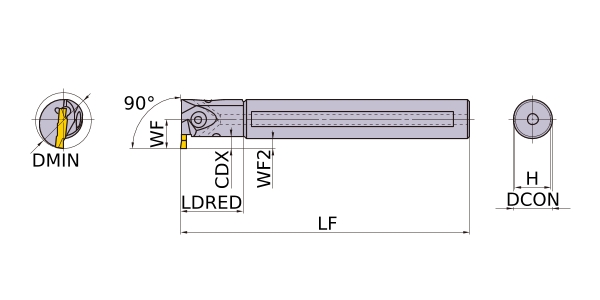

DMIN 25
DCON 20
LF 180
CDX 6
LDRED 30
WF 14.5
H 18
CW 2
WF2 4.5
2D Model (DXF)
CAD data name Download
6E1R9D1
