Spare Parts >GYSL1616JX00-F17
The actual product may differ from the displayed image.

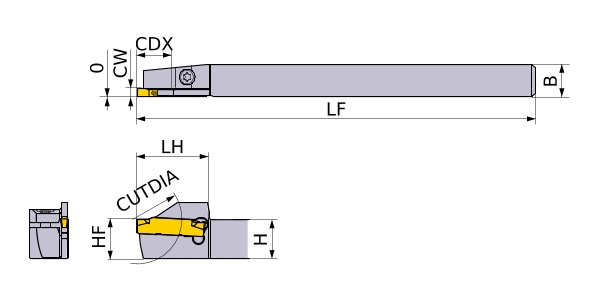

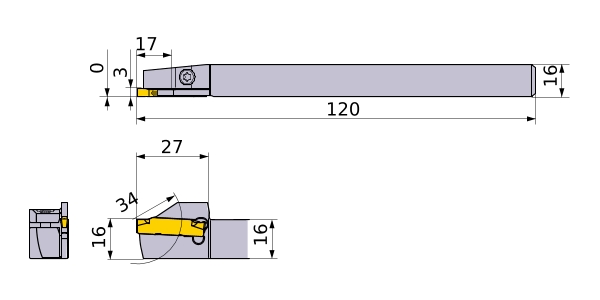

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | L |
Stock | ![]() |
Unit of Length | M |
CUTDIA | 34 |
B | 16 |
LF | 120 |
LH | 27 |
CDX | 17 |
H | 16 |
HF | 16 |
CW | 3 |
2D Model (DXF) | |
---|---|
CAD data name | Download |
GYSL1616JX00-F17
|
![]() |
3D Detail Model (STP,STL) | |
---|---|
CAD data name | Download |
GYSL1616JX00-F17
|
![]() |
3D Light Model (STP,STL) | ||
---|---|---|
CAD data name | RE | Download |
GYSL1616JX00-F17_CW3_00_N_MR0_2
|
0.2 |
![]() |
GYSL1616JX00-F17_CW3_00_N_MR1_5
|
1.5 |
![]() |
GYSL1616JX00-F17_CW3_18_N_MR0_2
|
0.2 |
![]() |
GYSL1616JX00-F17_CW3_18_N_MR1_5
|
1.5 |
![]() |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
