Spare Parts >GYQR2525M00-J08

Spare Parts

GYQR2525M00-J08

Product Information

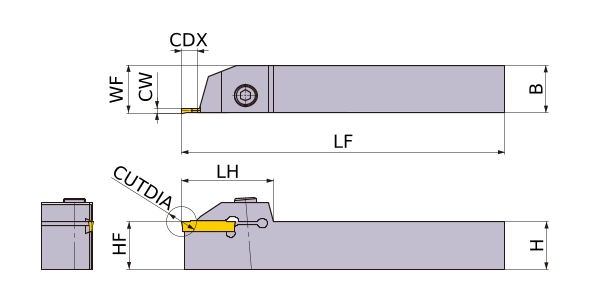

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock

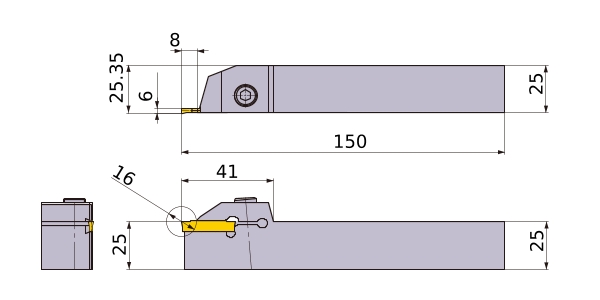

Unit of Length M
CUTDIA 16
B 25
LF 150
LH 41
CDX 8
WF 25.35
H 25
HF 25
CW 6
2D Model (DXF)
CAD data name Download
GYQR2525M00-J08
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQR2525M00-J08
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQR2525M00-J08_CW6_00_N_MR0_4
0.4 CAD
GYQR2525M00-J08_CW6_00_N_MR3_0
3 CAD
GYQR2525M00-J08_CW6_35_N_MR0_4
0.4 CAD
GYQR2525M00-J08_CW6_35_N_MR3_18
3.18 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
