Utensili serie mini >FSTUP_E >FSTUP1412R-09E-2/3

Utensili serie mini

FSTUP_E
（Dimple Bar）

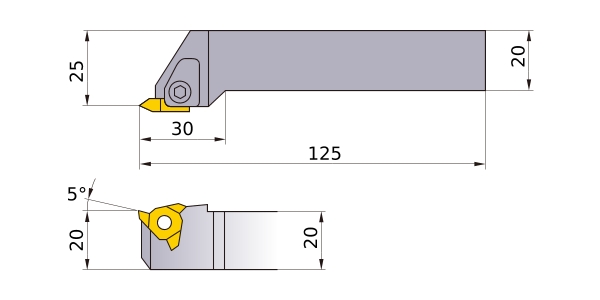

FSTUP1412R-09E-2/3

Product Information

  • Impiega inserti positivi 5°, 7°, 11°.
  • Eccellente resistenza alle vibrazioni per l’effetto di alleggerimenti nella testa.
  • Smaltimento trucioli migliorato con due canali per evacuazione dei trucioli.
  • Scala sul lato del portautensili semplifica l'impostazione del portautensili (stelo in acciaio).
  • Diametro interno da 3 a 5 volte il diametro (stelo in metallo duro da 7 a 8 volte il diametro).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 14
DCON 12
KAPR 93°
LF 120
LDRED 17.8
WF 7
H 11
GAMF 7
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__0902
2D Model (DXF)
CAD data name Download
MT1L2020K4
CAD
